PRODUCT DESCRIPTION

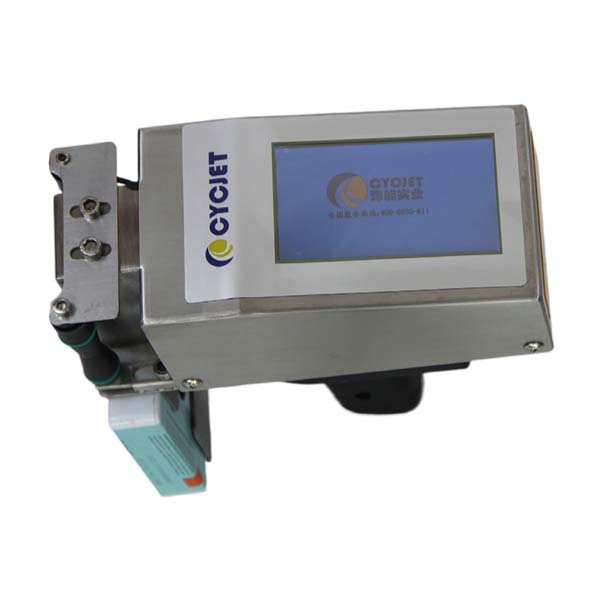

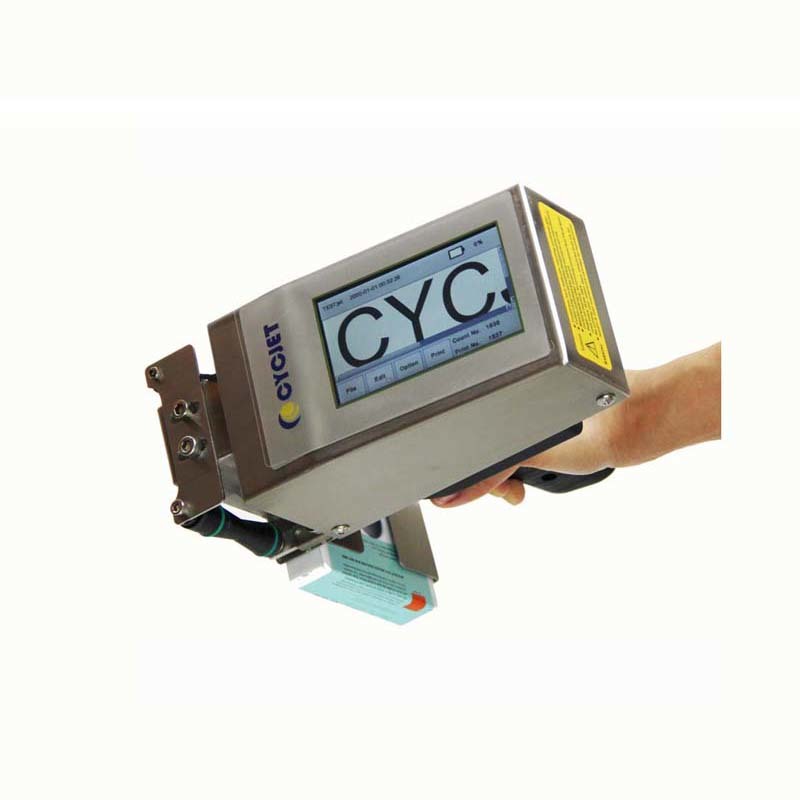

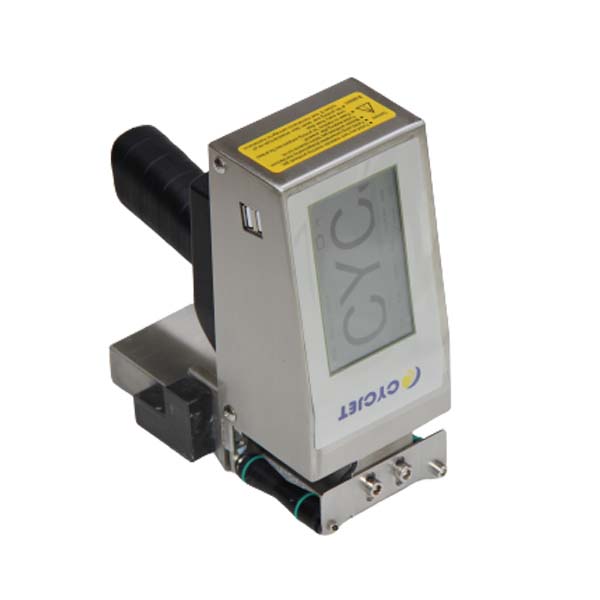

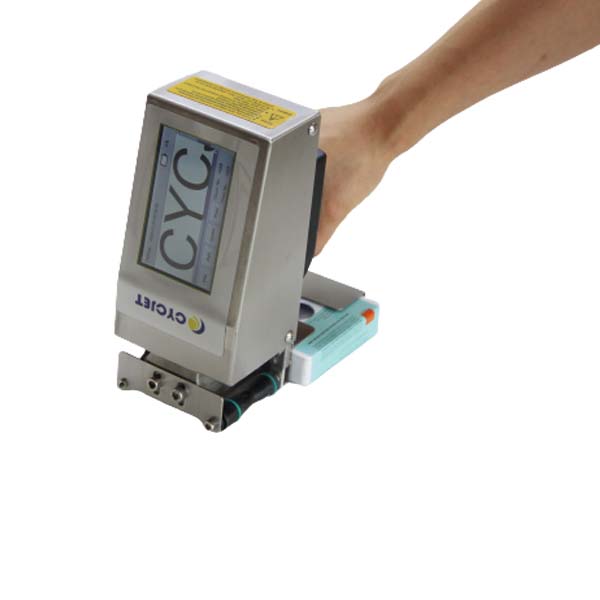

- CYCJET CH3 Hand Jet Printing System adopts original high resolution printhead, which is with high stability performance and clear printings.
- This model can print 1–36mm font size. Within 36mm printing height, it can print multi-lines like three, four or five, even ten lines.
- It has color touch screen, with which you can input the printing info directly, no need to connect with PC.
APPLICATION
Concrete Industry
Not restricted by the environment, you can print at anytime, anywhere. In addition to data editing and transmission through WiFi, Bluetooth and other methods, CYCJET ALT36Pro hand jet printer can be used in outdoor environments according to the needs of asbestos cement boards. With LCD touch screen for real-time editing and printing, which improves efficiency.
Steel Pipes Industry
ALT360 Hand held inkjet printers are widely used in the different diameter pipe industry. And it can be print a clear, beautiful, long-lasting logo &product name, date etc. The printing content is permanent and stable.
Steel Sheet Industry
As the steel wall frame involves different components, the CYCJET manual coding machine comes with an LCD touch screen, which can adjust the font size and related parameters at any time according to the product size. One machine is multi-purpose, and the ink printed on the metal surface by the special ink can be kept neat and beautiful for long. Does not appear discoloration, shifting and other phenomena.
Technical Specification
| Type | High Resolution/Piezo/Small Hand jet printer |
| Print Height | 1-36mm |
| Print Spacing | 8mm-10mm,it is subject to the printing content & ink type |
| Print Lines | The lines unlimited within Max height 18mm. |
| Print Length | Single file max length 90mm |
| Print Speed | Manual Control |
| Print Resolution | Max 360dpi |
| Print Fonts | The built-in various font, and horizontal bar,vertical bar,dot-matrix,bold font can be free change. |
| Print Content | Real Date, Real time, Photo, Letter, Shift group, Serial number, Batch number, Lot number Barcode and 2D code can be free print. |
| Print Direction | Side printing(upward and downward print optional) |
| Font library | Standard font library are Chinese & English, and The Spanish,Portuguese,Arabic font library can be optional |
| Operator Interfaces | Image-style & Chinese or English ( Spanish,Portuguese,Arabic)menu, What you see is what you get. |
| Memory Function | More than 1000pcs text can be storage |
| Display | 4.3 inch color touch screen |
| Ink Type | Ink is originally from UK. There are Solvent-based ink (machine should be regular maintenance); Invisible ink (Machine should be regular maintenance); Oil-based ink (machine maintenance free). |
| It can be print on the surface of plastic,glass,metal,paper,wood… | |
| Ink Color | Black, Red,Yellow, Blue,Green,white, etc… |
| Each Ink Cartridge | Each ink cartridge can be print 1.25 billion ink dots, when efficient production: |
| *each ink cartridge can be print 1.2 million pcs bottle cover or medicine box with 2 lines small dot-matrix font, the text size is 1*1.7cm2, the using cost for each product is RMB0.0005Yuan); | |
| *each ink cartridge can be print 0.12 million pcs big carton with big dot-matrix font, the text size is 1.75*10 cm2, the using cost for each carton is RMB0.005Yuan); | |
| *each ink cartridge can be print 60,000.00pcs big carton with bold font, the text size is 1.75*10 cm2, the using cost for each carton is RMB0.01); | |
| Weight of Machine Dimension of Machine | 1.1KG |
| 315*216*255mm | |
| Powder | The charger input AC100V-260V,50-60Hz, Output DC 12V |
| Humidity Range | 10-90% Non-condensing |
| Temperature Range | 5-40°C |
| External Interface | USB interface, Sensor (Optional), synchronizer (Optional). |
| Others | No need connect external compressed air, and no need thinner (i.e. solvent) |
